Argon Cylinder Filling Pump Skid

Argon Cylinder Filling Pump Skid

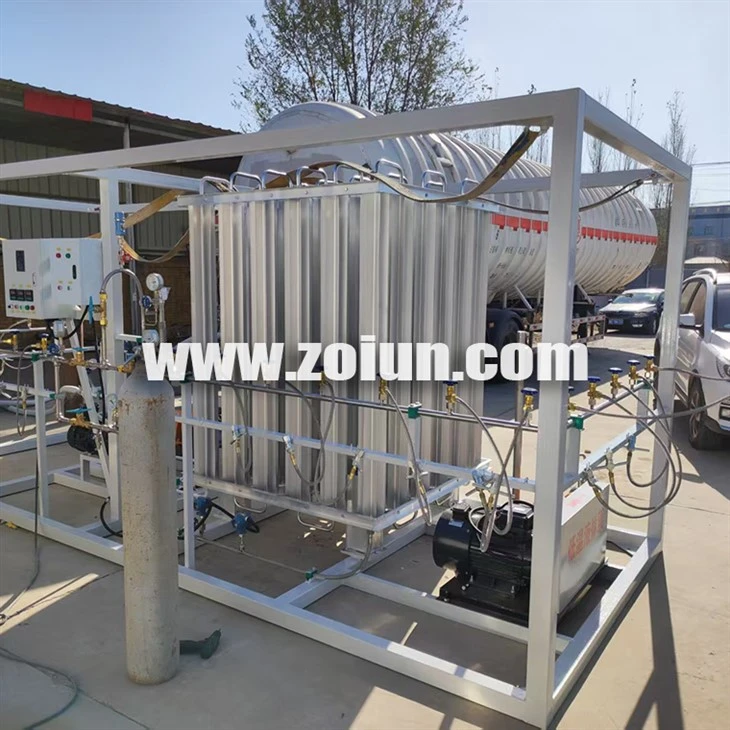

The Argon Cylinder Filling Pump Skid is pre‑assembled and factory‑tested on a base frame, integrating cryogenic filling pump, ambient air vaporizer, process piping, valve manifolds, measurement & control instruments and full‑range safety accessories in a compact layout. Adopting plug‑and‑play design, it saves customers from on‑site piping, welding and valve installation work. After delivery, only simple utility connections are required for fast commissioning. It greatly reduces site‑construction workload, shortens project commissioning time and avoids installation quality risks caused by field welding. Suitable for small‑and‑medium‑scale argon bottling applications, the system ensures stable filling performance, optimizes site layout and effectively cuts overall project investment.

Design Philosophy & Work Specifications

Design Philosophy

1. Adopting full‑frame integrated design, the argon cryogenic pump, high‑pressure vaporizer and all required accessories are assembled within the frame. With overall dimensions of **5.5 m(L) × 2.1 m(W) × 2.1 m(H)**, the unit is suitable for flat‑bed truck transportation and fits directly into standard shipping containers. The rigid frame also provides reliable protection for internal equipment against collision and damage during transit.

2. Thanks to the all‑in‑one skid‑mounted construction, complicated on‑site work including piping, welding and equipment assembly is eliminated. The system can be put into service upon simple connection, greatly saving customers' on‑site time and capital cost.

3. Customization is available according to site conditions. The number of filling stations can be adjusted based on actual filling capacity, with 4 to 12 stations configurable on each side.

Work Specifications
